POWER PROFILE SPIRALS FOR PIPE CLEANING - FOR LONG DISTANCE
Tool Description
🔧 Meet the Toughest Challenges with Our Premium Spiral for Continuous Operation! 🌐
Application Benefits
- 🛠️ Designed for Reliability: Engineered to excel under the toughest demands during continuous operation, ensuring durability and top-notch performance.
-

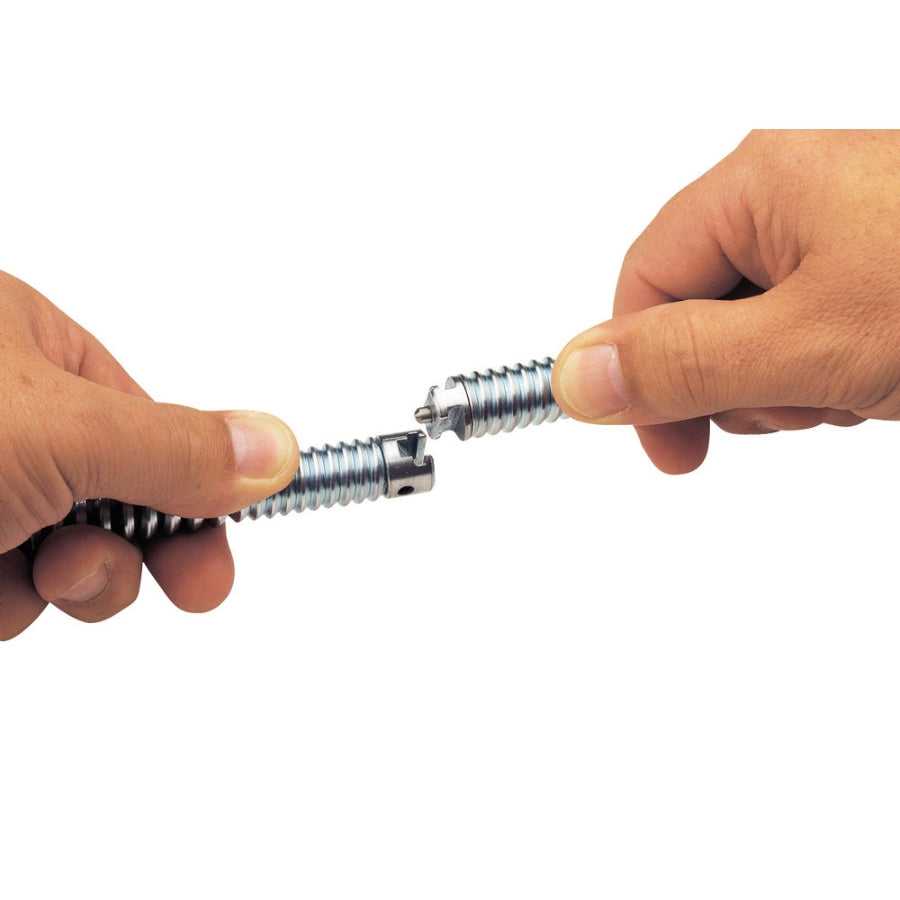

🔗 Bevelled Lead-ins: T-groove coupling with bevelled lead-ins for seamless coupling, facilitating quick and trouble-free connections, even when wearing gloves.
-
🧤 Glove-Friendly Coupling: Enhance usability with a coupling system that allows quick, trouble-free connections even when working with gloves.
-
🔩 Versatile Wire Gauge Options: Choose from specific wire gauges based on your needs, featuring high material characteristics and a perfected production process.
- 💪 Maximum Spring Tension: Specially hardened with a unique process, offering maximum spring tension, high elasticity, and flexibility.
- 🔒 Secure Lockring System:
- ROTHENBERGER Lockring: Coupled with a ROTHENBERGER lockring, providing a secure coupling with 100% surface pressure.
- Self-Locking Mechanism: As stress on the spiral increases, the self-locking connection transfers torque pressure with 100% surface coverage onto the coupling.
- 🔄 Optimal Torque Transmission:
- Increased Spiral Tension: Adjusts dynamically clockwise, depending on the obstruction resistance.
-

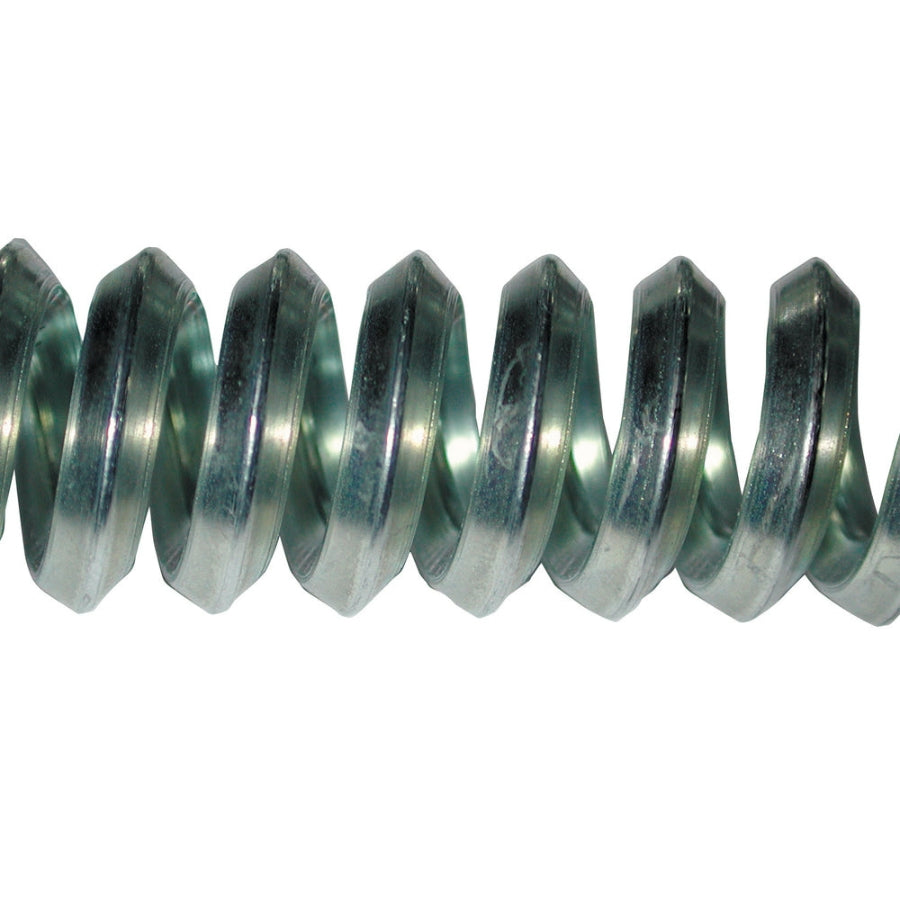

Tightly Wound Spiral: Short pitch and professional left-handed wound spiral for optimum high torque transmission.
- 🛢️ Premium Material and Construction:
- Quality Spring Steel: Manufactured from quality spring steel, type C DIN EN 10270-1 Material No. 11200, ensuring robust performance.
- Hardened and Tempered: Specially hardened and tempered for enduring strength and durability.
-
🔐 Safety and Precision Coupling System:
- NIROSTA Pressure Pin Locking Mechanism: Safety T-groove coupling system with a reliable NIROSTA pressure pin and spring for secure connections.
- Squared Spiral Wire Profile: DIN EN 10270-1 for an additional cleaning effect on the pipe wall.
-
🔄 Efficient Cleaning Design:
- Plastic Core: Prevents clogging with dirt, making it especially suitable for extended use.
- 50% More Cleaning Power: When used with spiral tools, it delivers 50% more cleaning power.
🚀 Elevate Your Operations. Choose K&T JV for Unmatched Reliability and Cleaning Power.
Spiral diameter |
16mm. 5/8" |
Spiral length |
2.3m |
Weight |
1.300kgs |
Qty |
1 Piece |
Key Product Features & Benefits
Picture of Feature | ||||
Feature Description | Insertion taper |
T groove made of Nirosta steel | Plastic core |
Profile cable |
Benefits |
Simple coupling of spirals and tools |
Long lasting and high functional safety with the high-quality coupling design |
Spiral won't clog with dirt |
Additional cleaning effect with the squared profile |
APPLICATIONS
TECHNICAL DATA
