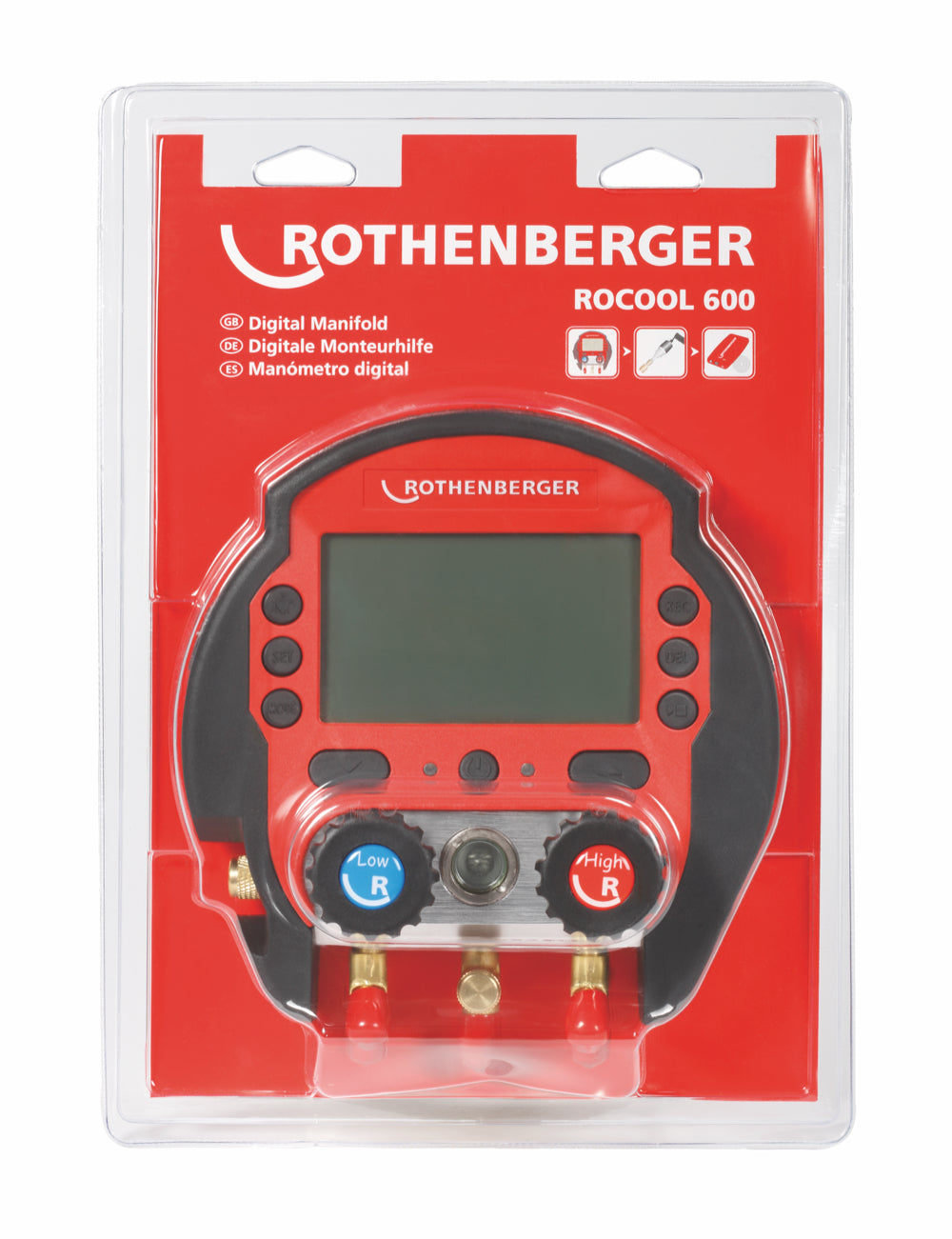

MANIFOLD - DIGITAL "COMMISSIONING / MAINTENANCE WORK / DOCUMENTATION"
Tool Description
Application Benefits

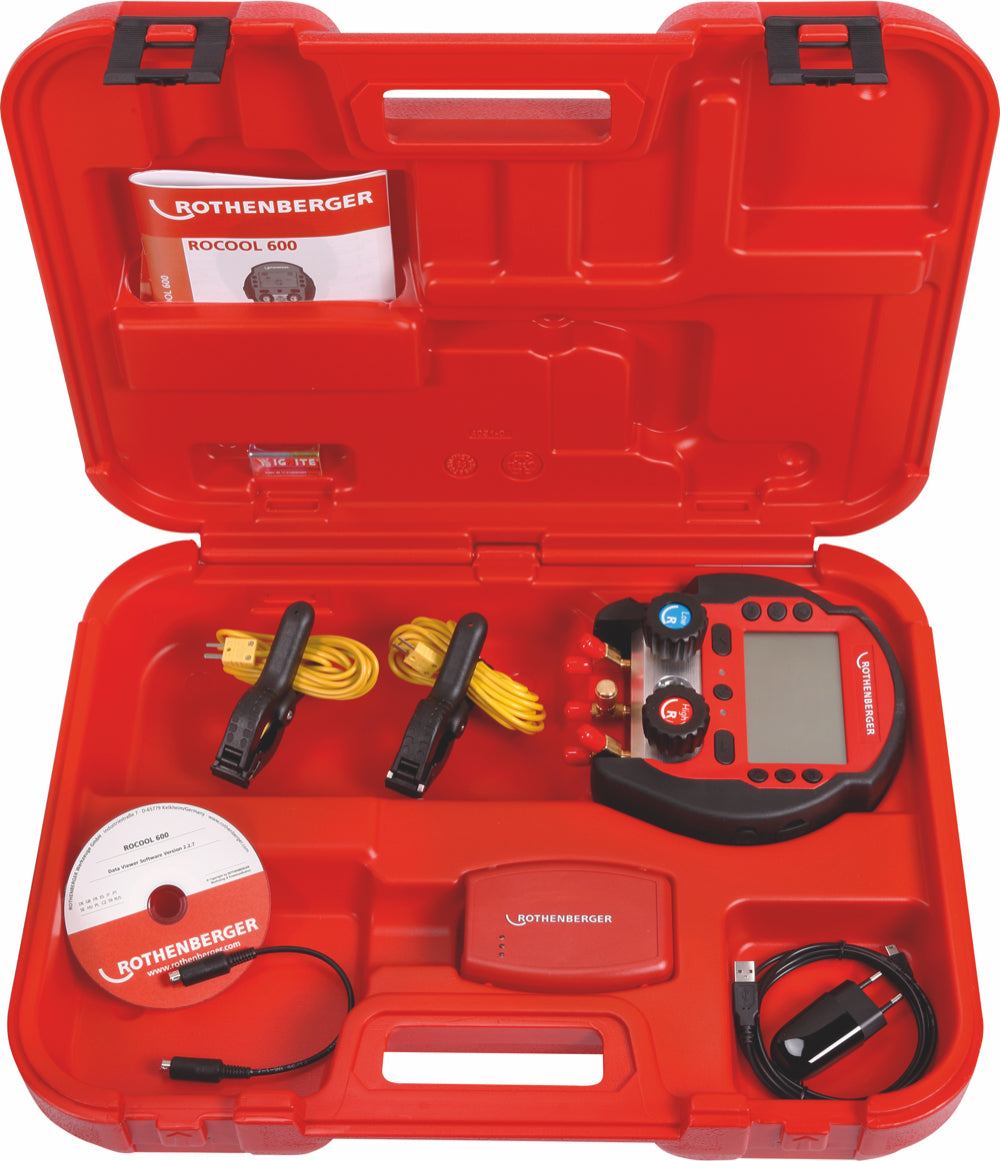

- Modular Design: Our core device is expandable with the optional Red Box, including Data Viewer software, making data reading and recording on a PC effortless.
- Extensive Refrigerant Database: With over 80 refrigerants, including R32 and R744 (sub-critical), stored and the ability to update with new ones, adaptability is at your fingertips.
- Dual Calculation Capability: Perform simultaneous calculations of superheat and subcool to ensure optimal system performance.
- Automated Documentation: The Data Viewer software automates report generation from recorded data, providing a professional and comprehensive handover document to your clients.
- Precise Vacuum Reading: An external Pirani vacuum probe offers the most accurate vacuum readings directly from the refrigeration system, ensuring precise maintenance work.
| Pressure display | Bar, Psi, Kpa, Mpa |
| Temperature display | Centigrade & Fahrenheit |
| Vacuum display | Micron, mbar, mmHg, Pa, mTorr |
| Working area Pressure | -1 to 60bar |
| Recording time | 96 h |
| Connection | 1/4" SAE |
| Coolants | R11, R113, R114, R115, R116, R12, R1234yf, R123A, R124, R125, R13, R134a, R141B, R142B, R143, R143A, R152A, R21, R218, R22, R227ea, R23, R290, R32, R401A, R401B, R401C, R402A, R402B, R403A, R403B, R404A, R405A, R406A, R407A, R407B, R407C, R407D, R408A, R409A, R410A, R410B, R411A, R411B, R412A, R413A, R414A, R414B, R415A, R416A, R417A, R420A, R421A, R421B, R422A, R422B, R422C, R422D, R424A, R427A, R434A, R437A, R438A, R500, R502, R503, R504, R507A, R508A, R508B, R509A, R600, R600A, R601, R601A, R718, R744 (subcritical). New refrigerant can be added later using the update function. |
Key Product Features & Benefits
| Feature Description | Temperature sensor T1 & T2 | RED BOX - Record Data | Pressure sensor | Vacuum Probe |
| Benefits | For automatic measurement of Subcool data & subheat data | Record data upto 96 hours & independent read out of data at a PC | Precise measurement from -1 to 60 bar | Precise measurement of the vacuum level directly at the refrigeration system |
