SKU: #PJ-49-EXS-A-XX-1"-B-KT

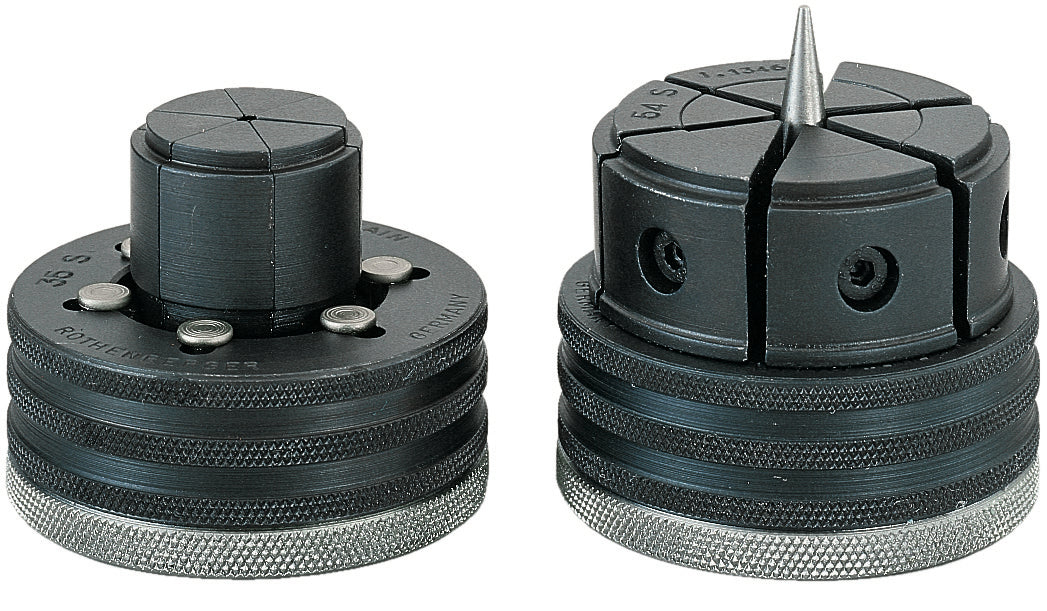

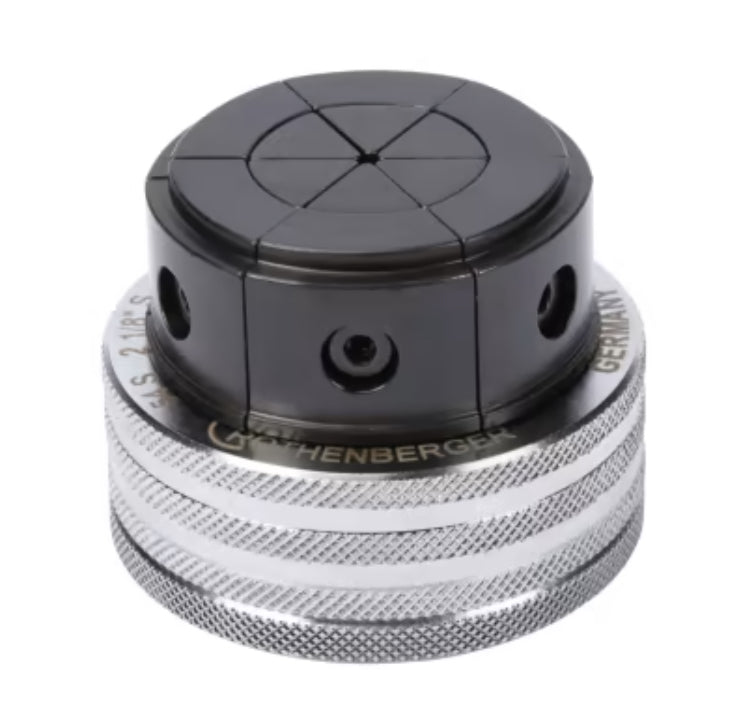

EXPANDER HEADS - "S TYPE"

Sale price
5.0

For expanding, reducing and calibrating soft and semihard pipes Ø 8–42 mm (5/16–1.3/4″) as well as producing tapers

EXPANDER HEADS - "KLICK & LOCK" Diameter in Inchs: 1"

EXPANDER HEADS - "KLICK & LOCK" Diameter in Inchs

Tool Description

Premium Precision Flaring Tool Ø 1"– 2.1/2" | Meets DVGW and Gas de France Standards

Revolutionize your pipe installations with our cutting-edge flaring tool, engineered for producing standard precision flares Ø 22–67 mm (1"–2.1/2″) that adhere to DVGW and Gas de France specifications. Ideal for expanding copper, stainless steel, and aluminum pipes in the sanitary/heating and refrigeration/air-conditioning sectors. Experience a 50% reduction in labor and materials thanks to consistent flare depth and compulsory guidance for perfect centration. Our robust tool, made in Germany, is the result of over 50 years of pioneering expertise in expanding technology. Trust the leading manufacturer for durable, precision-engineered expanding tools that also efficiently handle uneven pipe ends.

Application Benefits

  • Eliminates the cost of purchase and storage of fittings
  • Converts deformed pipes into fittings, saves resources
  • 50 % reduction of labour, soldering materials, joints and energy
  • Toolless adjustment of expanding dimension and capillary gap
  • Reliable pipe connection according to DVGW standards
  • Tough, light and wear-resistant

Key Product Features & Benefits



Feature Description Specially Hardened segments
6 Rivets and Guide Channels
Extra Long segments

Step at the end of the segments

Benefits
Robust & Long Lasting

Uniform capillary gap

Depth of Flare is consistent asper DVGW standards

Enables recalibration of irregular pipes & fittings




Product Videos

FEATURES

EPT-Technology (Enclosed Power Transmission) of the expander head offers the following technical benefits:

Concealed bent lever:
Protection against dirt and external mechanical damage

Energy efficient through optimised force transmission: Ergonomic, highly optimised force flow in relation to the hand force of the user, therefore reducing effort

TiN Coating (Titannitrid-coating) of the expander head offers the following technical benefits:

High durability 2,300 HV: Protection against abrasive wear

Lower friction value compared to steel: Less effort

Good chemical resistance: Good protection against corrosion

Universal wear resistance: Long-lasting

APPLICATIONS

For efficient, fitting-free installation of pipes in sanitary heating, gas, refrigeration and air-conditioning systems

Suitable for pipes made of:
Copper (soft and semi-hard):
Ø 8–42 mm, 5/16–1.3/4″, max. wall thickness 1.6 mm

Aluminium (soft):
Ø 8–28 mm, 5/16–1.1/8″, max. wall thickness 1.6 mm

Precision steel (soft):
Ø 8–28 mm, 5/16–1.1/8″, max. wall thickness 1.6 mm

Stainless steel (soft):
Ø 8–22 mm, 5/16–7/8″, max. wall thickness 1.0 mm
